Tiny

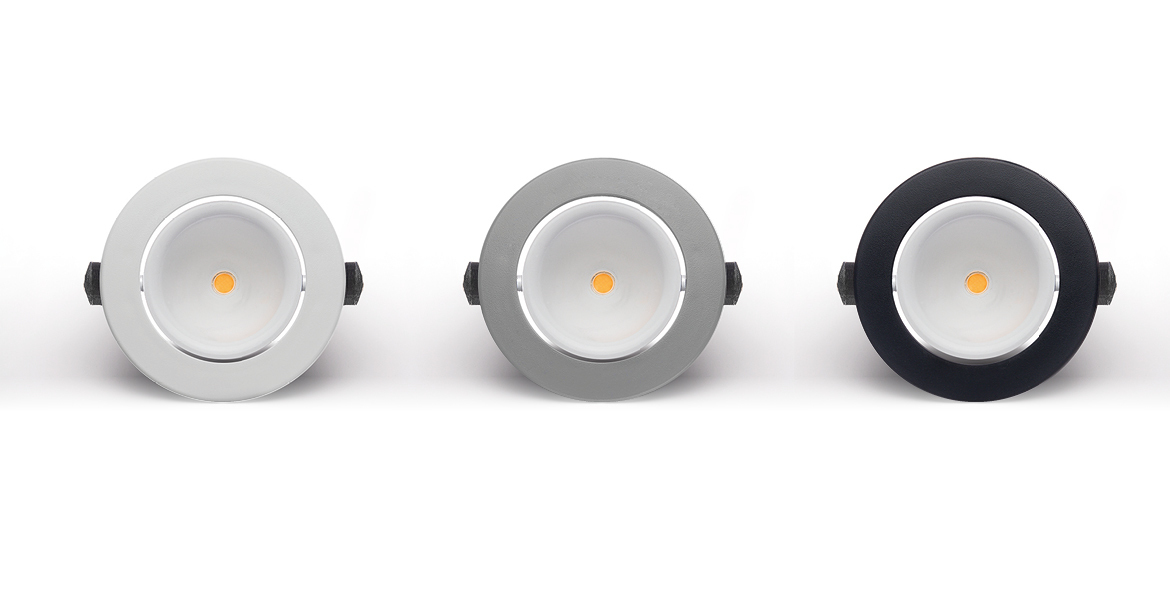

TINY is a reduced size, high performance swivelling downlight. Available with white, grey or black ring.
Technical characteristics
| Installation | Recessed Mounting |
| CRI | > 80 |
| IP | 20 |
| Range power (W) | 5 - 5 |
| Color temperature (ºK) | 3000 | 4000 |
| Light range | 670 - 700 |
| Dali option |
|
| Version | Standard | DALI2 | Phase cut regulation |
Downloads
References
Use the filters to see the model reference of this product that best fits your project:
| Reference | NG Calc | Net lumen output | Power | Efficiency (lm/W) | Temperature | IP | Downloads |
|---|---|---|---|---|---|---|---|
| TI03SB |
|
670 | 5,8 | 91.7 | 3000 | 20 |
|
| TI03SG |
|
670 | 5,8 | 91.7 | 3000 | 20 |
|
| TI03SN |
|
670 | 5,8 | 91.7 | 3000 | 20 |
|
| TI04SB |
|
700 | 5,8 | 95.8 | 4000 | 20 |
|
| TI04SG |
|
700 | 5,8 | 95.8 | 4000 | 20 |
|
| TI04SN |
|
700 | 5,8 | 95.8 | 4000 | 20 |
|
| TI03DB |
|
670 | 5,8 | 91.4 | 3000 | 20 |
|
| TI03DG |
|
670 | 5,8 | 91.4 | 3000 | 20 |
|
| TI03DN |
|
670 | 5,8 | 91.4 | 3000 | 20 |
|
| TI04DB |
|
700 | 5,8 | 95.5 | 4000 | 20 |
|
| TI04DG |
|
700 | 5,8 | 95.5 | 4000 | 20 |
|
| TI04DN |
|
700 | 5,8 | 95.5 | 4000 | 20 |
|
| TI03B |
|
670 | 5,8 | 91.7 | 3000 | 20 |
|
| TI03G |
|
670 | 5,8 | 91.7 | 3000 | 20 |
|
| TI03N |
|
670 | 5,8 | 91.7 | 3000 | 20 |
|
| TI04B |
|
700 | 5,8 | 95.8 | 4000 | 20 |
|
| TI04G |
|
700 | 5,8 | 95.8 | 4000 | 20 |
|
| TI04N |
|
700 | 5,8 | 95.8 | 4000 | 20 |
|
* Net Lumen output is indicated in technical datasheet.
