Elit Mini

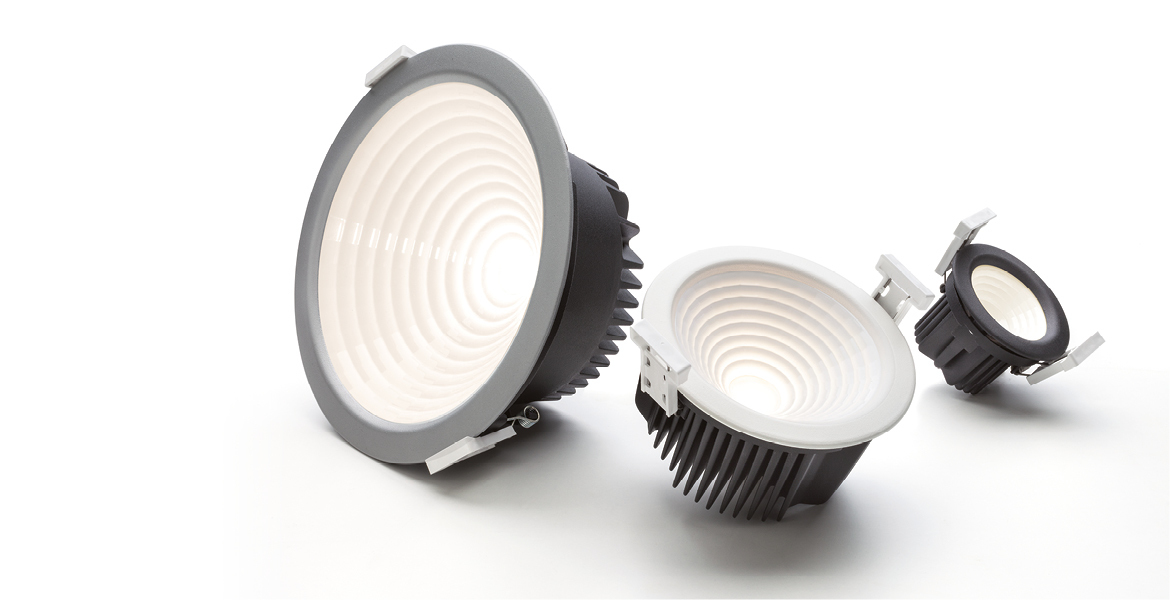

ELIT is the range of high added value recessed downlights by NormaLit. Their design, their features and their wide range make them the ideal downlight for any type of project. ELIT is the perfect balance between design andtechnology. Its aluminium body is specifically designed to ensure the temperature of the LED is at an optimum and to achieve the best efficiency and durability. Its distinctive reflector made of technical polycarbonate creates a high quality, uniform light without any spots.
Technical characteristics
| Installation | Recessed Mounting |
| CRI | > 80 |
| IP | 20 | 20-54 |
| Range power (W) | 14 - 14 |
| Color temperature (ºK) | 3000 | 4000 |
| Light range | 1350 - 1490 |
| Dali option |
|
| Version | Standard | DALI2 |
Downloads
References
Use the filters to see the model reference of this product that best fits your project:
| Reference | NG Calc | Net lumen output | Power | Efficiency (lm/W) | Temperature | IP | Downloads |
|---|---|---|---|---|---|---|---|
| EM13B |
|
1350 | 14 | 85.6 | 3000 | 20 |
|
| EM13G |
|
1350 | 14 | 85.6 | 3000 | 20 |
|
| EM13N |
|
1350 | 14 | 85.6 | 3000 | 20 |
|
| EM13OB |
|
1350 | 14 | 74.0 | 3000 | 20-54 |
|
| EM13OG |
|
1350 | 14 | 74.0 | 3000 | 20-54 |
|
| EM13ON |
|
1350 | 14 | 74.0 | 3000 | 20-54 |
|
| EM13TB |
|
1350 | 14 | 81.7 | 3000 | 20-54 |
|
| EM13TG |
|
1350 | 14 | 81.7 | 3000 | 20-54 |
|
| EM13TN |
|
1350 | 14 | 81.7 | 3000 | 20-54 |
|
| EM14B |
|
1490 | 14 | 94.4 | 4000 | 20 |
|
| EM14G |
|
1490 | 14 | 94.4 | 4000 | 20 |
|
| EM14N |
|
1490 | 14 | 94.4 | 4000 | 20 |
|
| EM14OB |
|
1490 | 14 | 81.7 | 4000 | 20-54 |
|
| EM14OG |
|
1490 | 14 | 81.7 | 4000 | 20-54 |
|
| EM14ON |
|
1490 | 14 | 81.7 | 4000 | 20-54 |
|
| EM14TB |
|
1490 | 14 | 90.2 | 4000 | 20-54 |
|
| EM14TG |
|
1490 | 14 | 90.2 | 4000 | 20-54 |
|
| EM14TN |
|
1490 | 14 | 90.2 | 4000 | 20-54 |
|
| EM13DB |
|
1350 | 14 | 85.6 | 3000 | 20 |
|
| EM13DG |
|
1350 | 14 | 85.6 | 3000 | 20 |
|
| EM13DN |
|
1350 | 14 | 85.6 | 3000 | 20 |
|
| EM13DOB |
|
1350 | 14 | 74.0 | 3000 | 20-54 |
|
| EM13DOG |
|
1350 | 14 | 74.0 | 3000 | 20-54 |
|
| EM13DON |
|
1350 | 14 | 74.0 | 3000 | 20-54 |
|
| EM13DTB |
|
1350 | 14 | 81.7 | 3000 | 20-54 |
|
| EM13DTG |
|
1350 | 14 | 81.7 | 3000 | 20-54 |
|
| EM13DTN |
|
1350 | 14 | 81.7 | 3000 | 20-54 |
|
| EM14DB |
|
1490 | 14 | 94.4 | 4000 | 20 |
|
| EM14DG |
|
1490 | 14 | 94.4 | 4000 | 20 |
|
| EM14DN |
|
1490 | 14 | 94.4 | 4000 | 20 |
|
| EM14DOB |
|
1490 | 14 | 81.7 | 4000 | 20-54 |
|
| EM14DOG |
|
1490 | 14 | 81.7 | 4000 | 20-54 |
|
| EM14DON |
|
1490 | 14 | 81.7 | 4000 | 20-54 |
|
| EM14DTB |
|
1490 | 14 | 90.2 | 4000 | 20-54 |
|
| EM14DTG |
|
1490 | 14 | 90.2 | 4000 | 20-54 |
|
| EM14DTN |
|
1490 | 14 | 90.2 | 4000 | 20-54 |
|
* Net Lumen output is indicated in technical datasheet.
