Kuiper

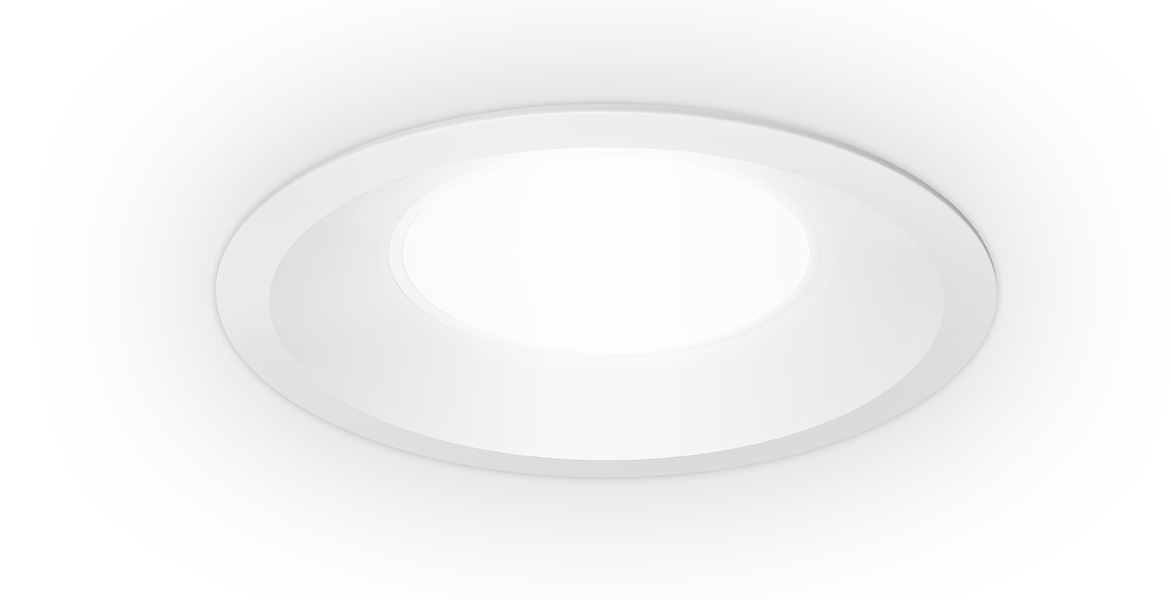

KUIPER is a compact recessed downlight with a diameter of 210mm and a height of 57mm. It has an aluminum heatsink, opal prismatic polycarbonate diffuser and ABS reflector. It is available in standard and DALI versions.
Technical characteristics
| Installation | Recessed Mounting |
| CRI | > 80 |
| IP | 20-54 |
| Range power (W) | 13 - 13 |
| Color temperature (ºK) | 3000 | 4000 | 5000 |
| Light range | 1750 - 1880 |
| Dali option |
|
| Version | Standard | DALI2 |
Downloads
References
Use the filters to see the model reference of this product that best fits your project:
| Reference | NG Calc | Net lumen output | Power | Efficiency (lm/W) | Temperature | IP | Downloads |
|---|---|---|---|---|---|---|---|
| K23B |
|
1750 | 13 | 85.3 | 3000 | 20-54 |
|
| K24B |
|
1850 | 13 | 90.2 | 4000 | 20-54 |
|
| K25B |
|
1880 | 13 | 91.6 | 5000 | 20-54 |
|
| K23DB |
|
1750 | 13 | 85.3 | 3000 | 20-54 |
|
| K24DB |
|
1850 | 13 | 90.2 | 4000 | 20-54 |
|
| K25DB |
|
1880 | 13 | 91.6 | 5000 | 20-54 |
|
* Net Lumen output is indicated in technical datasheet.
