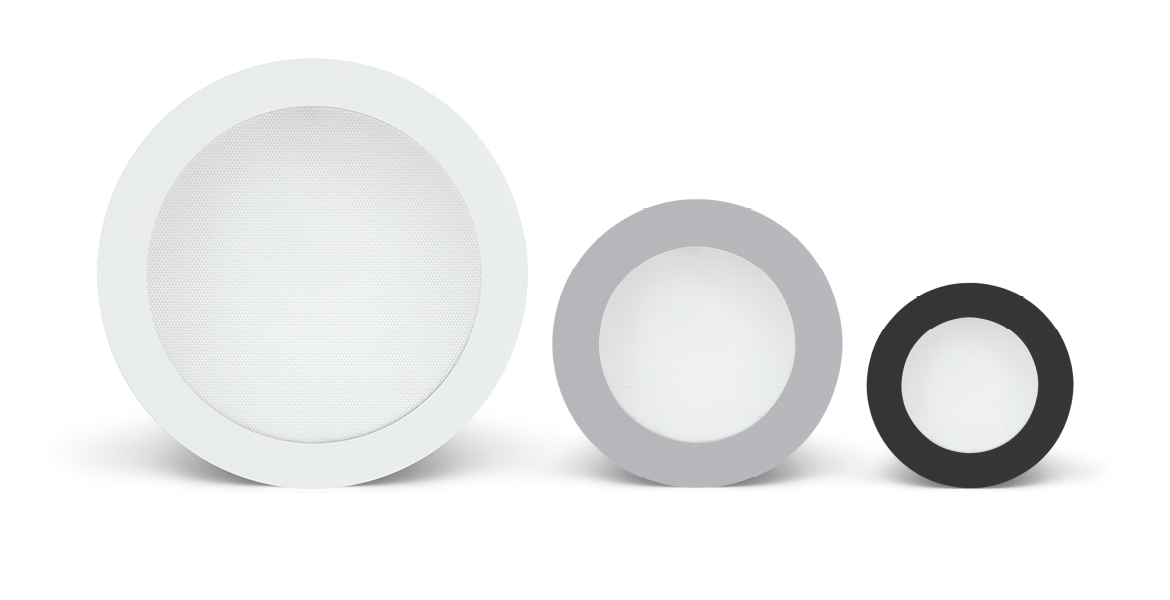

Hat Mini

Hat is the latest generation of LED Downlights: With only 44mm height and a performance of 75% it can reach up to 2.400 lumen output. HAT is a compact downlight of high efficiency, with DALI version available and EH1 50.000h L70B10 / EH2 70.000h L70B10 life expectancy. As a new product within the HAT family, HAT HR is a revision of the popular Normalit downlight. A new design that keeps the original essence and has a lower glare.

Hat Mini

Technical characteristics

Installation	Recessed Mounting
CRI	> 80
IP	20-54

Range power (W)	10 - 10
Color temperature (ºK)	3000 \| 4000 \| 5000 \| 6000
Light range	1400 - 1520
Dali option
Version	Standard \| DALI2

Downloads

References

Use the filters to see the model reference of this product that best fits your project:

Reference	Net lumen output	Power	Efficiency (lm/W)	Temperature	IP
EHM13B	1400	10,9	80.7	3000	20-54
EHM13G	1400	10,9	80.7	3000	20-54
EHM13N	1400	10,9	80.7	3000	20-54
EHM14B	1500	10,9	86.5	4000	20-54
EHM14G	1500	10,9	86.5	4000	20-54
EHM14N	1500	10,9	86.5	4000	20-54
EHM15B	1520	10,9	87.7	5000	20-54
EHM15G	1520	10,9	87.7	5000	20-54
EHM15N	1520	10,9	87.7	5000	20-54
EHM16B	1520	10,9	87.7	6000	20-54
EHM16G	1520	10,9	87.7	6000	20-54
EHM16N	1520	10,9	87.7	6000	20-54
EHM13DB	1400	10,9	80.7	3000	20-54
EHM13DG	1400	10,9	80.7	3000	20-54
EHM13DN	1400	10,9	80.7	3000	20-54
EHM14DB	1500	10,9	86.5	4000	20-54
EHM14DG	1500	10,9	86.5	4000	20-54
EHM14DN	1500	10,9	86.5	4000	20-54
EHM15DB	1520	10,9	87.7	5000	20-54
EHM15DG	1520	10,9	87.7	5000	20-54
EHM15DN	1520	10,9	87.7	5000	20-54
EHM16DB	1520	10,9	87.7	6000	20-54
EHM16DG	1520	10,9	87.7	6000	20-54
EHM16DN	1520	10,9	87.7	6000	20-54
