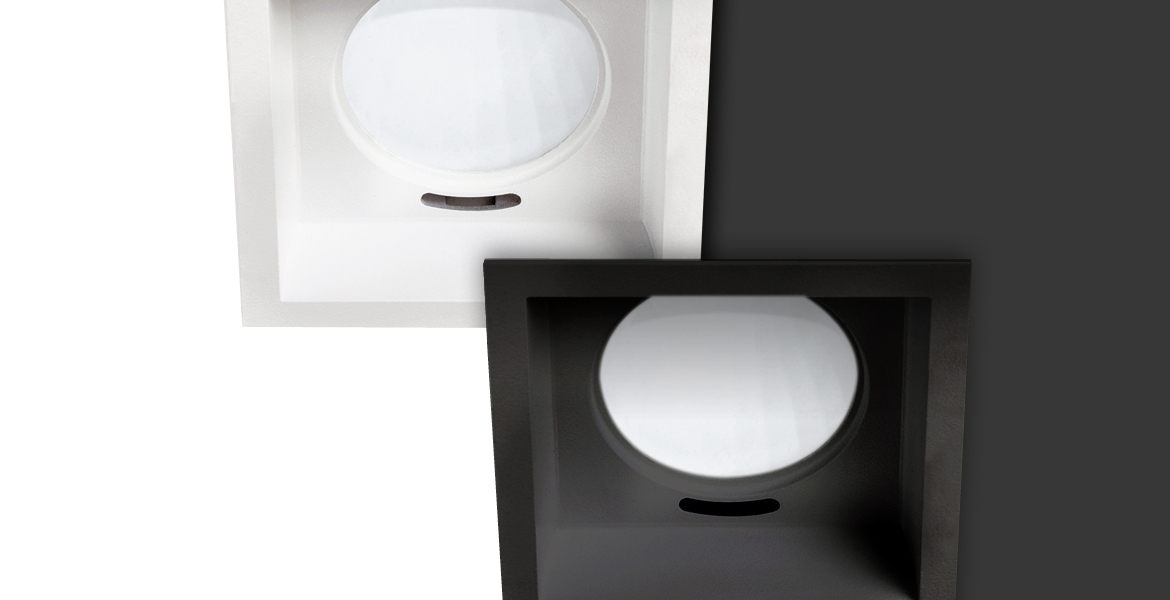

Nahika Micro Q
NAHIKA is a range of downlights available in three sizes in rounded or square formats. They incorporate a high-performance aluminium heat sink which optimises the efficiency of the set. Installation frame manufactured in aluminium and decorative frame in technical plastic. A wall-washer version is also available. Ceiling installation is achieved by means of a simple worm gear lock and aluminium anchor system.
Technical characteristics
| Installation | Recessed Mounting |
| CRI | > 80 |
| IP | 20 |
| Range power (W) | 14 - 14 |
| Color temperature (ºK) | 3000 | 4000 |
| Light range | 1350 - 1490 |
| Dali option |
|
| Version | Standard | DALI2 |
Downloads
References
Use the filters to see the model reference of this product that best fits your project:
| Reference | NG Calc | Net lumen output | Power | Efficiency (lm/W) | Temperature | IP | Downloads |
|---|---|---|---|---|---|---|---|
| WLPQB13B |
|
1350 | 14 | 80.8 | 3000 | 20 |
|
| WLPQB13N |
|
1350 | 14 | 80.8 | 3000 | 20 |
|
| WLPQF13B |
|
1350 | 14 | 80.8 | 3000 | 20 |
|
| WLPQF13FB |
|
1350 | 14 | 77.3 | 3000 | 20 |
|
| WLPQF13FN |
|
1350 | 14 | 61.4 | 3000 | 20 |
|
| WLPQF13N |
|
1350 | 14 | 80.8 | 3000 | 20 |
|
| WLPQB14B |
|
1490 | 14 | 89.2 | 4000 | 20 |
|
| WLPQB14N |
|
1490 | 14 | 89.2 | 4000 | 20 |
|
| WLPQF14B |
|
1490 | 14 | 89.2 | 4000 | 20 |
|
| WLPQF14FB |
|
1490 | 14 | 85.3 | 4000 | 20 |
|
| WLPQF14FN |
|
1490 | 14 | 67.7 | 4000 | 20 |
|
| WLPQF14N |
|
1490 | 14 | 89.2 | 4000 | 20 |
|
| WLPQB13DB |
|
1350 | 14 | 80.8 | 3000 | 20 |
|
| WLPQB13DN |
|
1350 | 14 | 80.8 | 3000 | 20 |
|
| WLPQF13DB |
|
1350 | 14 | 80.8 | 3000 | 20 |
|
| WLPQF13DN |
|
1350 | 14 | 80.8 | 3000 | 20 |
|
| WLPQF13FDB |
|
1350 | 14 | 77.3 | 3000 | 20 |
|
| WLPQF13FDN |
|
1350 | 14 | 61.4 | 3000 | 20 |
|
| WLPQB14DB |
|
1490 | 14 | 89.2 | 4000 | 20 |
|
| WLPQB14DN |
|
1490 | 14 | 89.2 | 4000 | 20 |
|
| WLPQF14DB |
|
1490 | 14 | 89.2 | 4000 | 20 |
|
| WLPQF14DN |
|
1490 | 14 | 89.2 | 4000 | 20 |
|
| WLPQF14FDB |
|
1490 | 14 | 85.3 | 4000 | 20 |
|
| WLPQF14FDN |
|
1490 | 14 | 67.7 | 4000 | 20 |
|
* Net Lumen output is indicated in technical datasheet.
