Dorfin Q

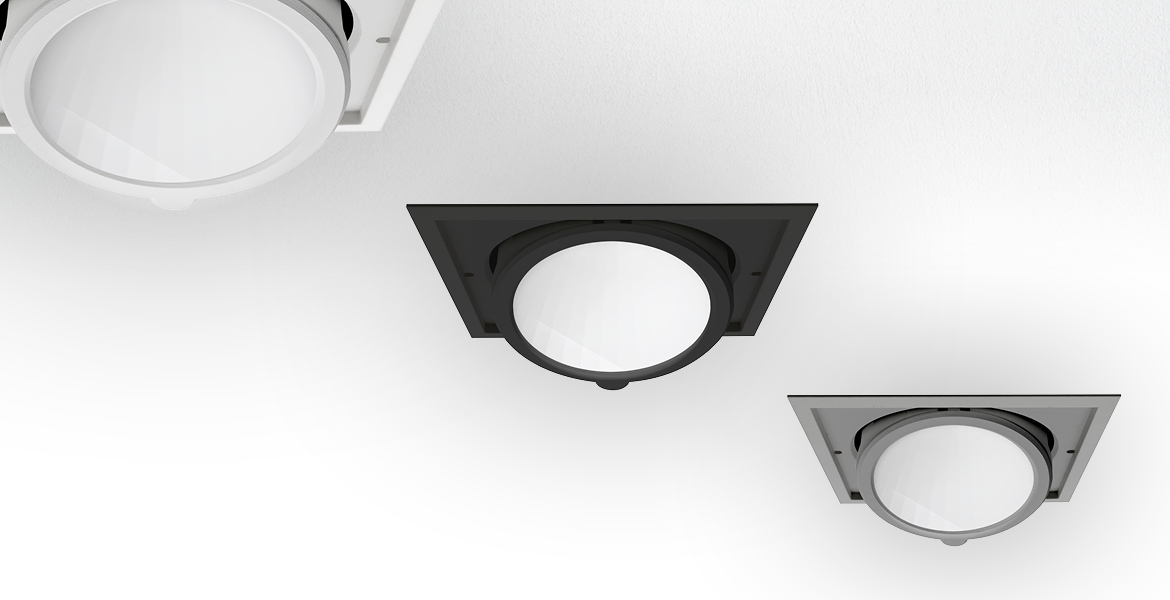

DORFIN is a rounded or square swivelling downlight. It is entirely made from cast aluminium and the reflector is made of high reflection technical polycarbonate. With separate electrical equipment, it enables a 85º tilt and 355º rotation. DORFIN range is available in white, grey or black. It can be provided without diffuser, with opal glass or with intensive reflector.
Technical characteristics
| Installation | Recessed Mounting |
| CRI | > 80 |
| IP | 20 |
| Range power (W) | 11 - 25 |
| Color temperature (ºK) | 2700 | 3000 | 4000 | 5000 |
| Light range | 1760 - 3780 |
| Dali option |
|
| Version | Standard | DALI2 |
Downloads
References
Use the filters to see the model reference of this product that best fits your project:
| Reference | NG Calc | Net lumen output | Power | Efficiency (lm/W) | Temperature | IP | Downloads |
|---|---|---|---|---|---|---|---|
| DQMMB |
|
1760 | 21 | 54.6 | 4000 | 20 |
|
| DQMMG |
|
1760 | 21 | 54.6 | 4000 | 20 |
|
| DQMMN |
|
1760 | 21 | 54.6 | 4000 | 20 |
|
| DQMOB |
|
1760 | 25,5 | 54.1 | 4000 | 20 |
|
| DQMOG |
|
1760 | 25,5 | 54.1 | 4000 | 20 |
|
| DQMON |
|
1760 | 25,5 | 54.1 | 4000 | 20 |
|
| DQMSB |
|
1760 | 25,5 | 56.4 | 4000 | 20 |
|
| DQMSG |
|
1760 | 25,5 | 56.4 | 4000 | 20 |
|
| DQMSN |
|
1760 | 25,5 | 56.4 | 4000 | 20 |
|
| DQ23MB |
|
1930 | 11,8 | 128.9 | 3000 | 20 |
|
| DQ23MG |
|
1930 | 11,8 | 128.9 | 3000 | 20 |
|
| DQ23MN |
|
1930 | 11,8 | 128.9 | 3000 | 20 |
|
| DQ23OB |
|
1930 | 11,8 | 127.8 | 3000 | 20 |
|
| DQ23OG |
|
1930 | 11,8 | 127.8 | 3000 | 20 |
|
| DQ23ON |
|
1930 | 11,8 | 127.8 | 3000 | 20 |
|
| DQ23SB |
|
1930 | 11,8 | 133.3 | 3000 | 20 |
|
| DQ23SG |
|
1930 | 11,8 | 133.3 | 3000 | 20 |
|
| DQ23SN |
|
1930 | 11,8 | 133.3 | 3000 | 20 |
|
| DQ24MB |
|
2050 | 11,8 | 136.9 | 4000 | 20 |
|
| DQ24MG |
|
2050 | 11,8 | 136.9 | 4000 | 20 |
|
| DQ24MN |
|
2050 | 11,8 | 136.9 | 4000 | 20 |
|
| DQ24OB |
|
2050 | 11,8 | 135.8 | 4000 | 20 |
|
| DQ24OG |
|
2050 | 11,8 | 135.8 | 4000 | 20 |
|
| DQ24ON |
|
2050 | 11,8 | 135.8 | 4000 | 20 |
|
| DQ24SB |
|
2050 | 11,8 | 141.6 | 4000 | 20 |
|
| DQ24SG |
|
2050 | 11,8 | 141.6 | 4000 | 20 |
|
| DQ24SN |
|
2050 | 11,8 | 141.6 | 4000 | 20 |
|
| DQBMB |
|
2365 | 24,5 | 76.3 | 2700 | 20 |
|
| DQBMG |
|
2365 | 24,5 | 76.3 | 2700 | 20 |
|
| DQBMN |
|
2365 | 24,5 | 76.3 | 2700 | 20 |
|
| DQBOB |
|
2365 | 24,5 | 75.7 | 2700 | 20 |
|
| DQBOG |
|
2365 | 24,5 | 75.7 | 2700 | 20 |
|
| DQBON |
|
2365 | 24,5 | 75.7 | 2700 | 20 |
|
| DQBSB |
|
2365 | 24,5 | 79.0 | 2700 | 20 |
|
| DQBSG |
|
2365 | 24,5 | 79.0 | 2700 | 20 |
|
| DQBSN |
|
2365 | 24,5 | 79.0 | 2700 | 20 |
|
| DQ33MB |
|
2650 | 17,4 | 120.2 | 3000 | 20 |
|
| DQ33MG |
|
2650 | 17,4 | 120.2 | 3000 | 20 |
|
| DQ33MN |
|
2650 | 17,4 | 120.2 | 3000 | 20 |
|
| DQ33OB |
|
2650 | 17,4 | 119.2 | 3000 | 20 |
|
| DQ33OG |
|
2650 | 17,4 | 119.2 | 3000 | 20 |
|
| DQ33ON |
|
2650 | 17,4 | 119.2 | 3000 | 20 |
|
| DQ33SB |
|
2650 | 17,4 | 124.3 | 3000 | 20 |
|
| DQ33SG |
|
2650 | 17,4 | 124.3 | 3000 | 20 |
|
| DQ33SN |
|
2650 | 17,4 | 124.3 | 3000 | 20 |
|
| DQ34MB |
|
2850 | 17,4 | 129.2 | 4000 | 20 |
|
| DQ34MG |
|
2850 | 17,4 | 129.2 | 4000 | 20 |
|
| DQ34MN |
|
2850 | 17,4 | 129.2 | 4000 | 20 |
|
| DQ34OB |
|
2850 | 17,4 | 128.2 | 4000 | 20 |
|
| DQ34OG |
|
2850 | 17,4 | 128.2 | 4000 | 20 |
|
| DQ34ON |
|
2850 | 17,4 | 128.2 | 4000 | 20 |
|
| DQ34SB |
|
2850 | 17,4 | 133.7 | 4000 | 20 |
|
| DQ34SG |
|
2850 | 17,4 | 133.7 | 4000 | 20 |
|
| DQ34SN |
|
2850 | 17,4 | 133.7 | 4000 | 20 |
|
| DQFMB |
|
3250 | 25,5 | 100.6 | 5000 | 20 |
|
| DQFMG |
|
3250 | 25,5 | 100.6 | 5000 | 20 |
|
| DQFMN |
|
3250 | 25,5 | 100.6 | 5000 | 20 |
|
| DQFOB |
|
3250 | 25,5 | 99.8 | 5000 | 20 |
|
| DQFOG |
|
3250 | 25,5 | 99.8 | 5000 | 20 |
|
| DQFON |
|
3250 | 25,5 | 99.8 | 5000 | 20 |
|
| DQFSB |
|
3250 | 25,5 | 104.0 | 5000 | 20 |
|
| DQFSG |
|
3250 | 25,5 | 104.0 | 5000 | 20 |
|
| DQFSN |
|
3250 | 25,5 | 104.0 | 5000 | 20 |
|
| DQ43MB |
|
3580 | 25,1 | 112.5 | 3000 | 20 |
|
| DQ43MG |
|
3580 | 25,1 | 112.5 | 3000 | 20 |
|
| DQ43MN |
|
3580 | 25,1 | 112.5 | 3000 | 20 |
|
| DQ43OB |
|
3580 | 25,1 | 111.6 | 3000 | 20 |
|
| DQ43OG |
|
3580 | 25,1 | 111.6 | 3000 | 20 |
|
| DQ43ON |
|
3580 | 25,1 | 111.6 | 3000 | 20 |
|
| DQ43SB |
|
3580 | 25,1 | 116.4 | 3000 | 20 |
|
| DQ43SG |
|
3580 | 25,1 | 116.4 | 3000 | 20 |
|
| DQ43SN |
|
3580 | 25,1 | 116.4 | 3000 | 20 |
|
| DQ44MB |
|
3780 | 25,1 | 118.8 | 4000 | 20 |
|
| DQ44MG |
|
3780 | 25,1 | 118.8 | 4000 | 20 |
|
| DQ44MN |
|
3780 | 25,1 | 118.8 | 4000 | 20 |
|
| DQ44OB |
|
3780 | 25,1 | 117.9 | 4000 | 20 |
|
| DQ44OG |
|
3780 | 25,1 | 117.9 | 4000 | 20 |
|
| DQ44ON |
|
3780 | 25,1 | 117.9 | 4000 | 20 |
|
| DQ44SB |
|
3780 | 25,1 | 122.9 | 4000 | 20 |
|
| DQ44SG |
|
3780 | 25,1 | 122.9 | 4000 | 20 |
|
| DQ44SN |
|
3780 | 25,1 | 122.9 | 4000 | 20 |
|
| DQ23DMB |
|
1930 | 11,8 | 128.9 | 3000 | 20 |
|
| DQ23DMG |
|
1930 | 11,8 | 128.9 | 3000 | 20 |
|
| DQ23DMN |
|
1930 | 11,8 | 128.9 | 3000 | 20 |
|
| DQ23DOB |
|
1930 | 11,8 | 127.8 | 3000 | 20 |
|
| DQ23DOG |
|
1930 | 11,8 | 127.8 | 3000 | 20 |
|
| DQ23DON |
|
1930 | 11,8 | 127.8 | 3000 | 20 |
|
| DQ23DSB |
|
1930 | 11,8 | 133.3 | 3000 | 20 |
|
| DQ23DSG |
|
1930 | 11,8 | 133.3 | 3000 | 20 |
|
| DQ23DSN |
|
1930 | 11,8 | 133.3 | 3000 | 20 |
|
| DQ24DMB |
|
2050 | 11,8 | 136.9 | 4000 | 20 |
|
| DQ24DMG |
|
2050 | 11,8 | 136.9 | 4000 | 20 |
|
| DQ24DMN |
|
2050 | 11,8 | 136.9 | 4000 | 20 |
|
| DQ24DOB |
|
2050 | 11,8 | 135.8 | 4000 | 20 |
|
| DQ24DOG |
|
2050 | 11,8 | 135.8 | 4000 | 20 |
|
| DQ24DON |
|
2050 | 11,8 | 135.8 | 4000 | 20 |
|
| DQ24DSB |
|
2050 | 11,8 | 141.6 | 4000 | 20 |
|
| DQ24DSG |
|
2050 | 11,8 | 141.6 | 4000 | 20 |
|
| DQ24DSN |
|
2050 | 11,8 | 141.6 | 4000 | 20 |
|
| DQ33DMB |
|
2650 | 17,4 | 120.2 | 3000 | 20 |
|
| DQ33DMG |
|
2650 | 17,4 | 120.2 | 3000 | 20 |
|
| DQ33DMN |
|
2650 | 17,4 | 120.2 | 3000 | 20 |
|
| DQ33DOB |
|
2650 | 17,4 | 119.2 | 3000 | 20 |
|
| DQ33DOG |
|
2650 | 17,4 | 119.2 | 3000 | 20 |
|
| DQ33DON |
|
2650 | 17,4 | 119.2 | 3000 | 20 |
|
| DQ33DSB |
|
2650 | 17,4 | 124.3 | 3000 | 20 |
|
| DQ33DSG |
|
2650 | 17,4 | 124.3 | 3000 | 20 |
|
| DQ33DSN |
|
2650 | 17,4 | 124.3 | 3000 | 20 |
|
| DQ34DMB |
|
2850 | 17,4 | 129.2 | 4000 | 20 |
|
| DQ34DMG |
|
2850 | 17,4 | 129.2 | 4000 | 20 |
|
| DQ34DMN |
|
2850 | 17,4 | 129.2 | 4000 | 20 |
|
| DQ34DOB |
|
2850 | 17,4 | 128.2 | 4000 | 20 |
|
| DQ34DOG |
|
2850 | 17,4 | 128.2 | 4000 | 20 |
|
| DQ34DON |
|
2850 | 17,4 | 128.2 | 4000 | 20 |
|
| DQ34DSB |
|
2850 | 17,4 | 133.7 | 4000 | 20 |
|
| DQ34DSG |
|
2850 | 17,4 | 133.7 | 4000 | 20 |
|
| DQ34DSN |
|
2850 | 17,4 | 133.7 | 4000 | 20 |
|
| DQ43DMB |
|
3580 | 25,1 | 112.5 | 3000 | 20 |
|
| DQ43DMG |
|
3580 | 25,1 | 112.5 | 3000 | 20 |
|
| DQ43DMN |
|
3580 | 25,1 | 112.5 | 3000 | 20 |
|
| DQ43DOB |
|
3580 | 25,1 | 111.6 | 3000 | 20 |
|
| DQ43DOG |
|
3580 | 25,1 | 111.6 | 3000 | 20 |
|
| DQ43DON |
|
3580 | 25,1 | 111.6 | 3000 | 20 |
|
| DQ43DSB |
|
3580 | 25,1 | 116.4 | 3000 | 20 |
|
| DQ43DSG |
|
3580 | 25,1 | 116.4 | 3000 | 20 |
|
| DQ43DSN |
|
3580 | 25,1 | 116.4 | 3000 | 20 |
|
| DQ44DMB |
|
3780 | 25,1 | 118.8 | 4000 | 20 |
|
| DQ44DMG |
|
3780 | 25,1 | 118.8 | 4000 | 20 |
|
| DQ44DMN |
|
3780 | 25,1 | 118.8 | 4000 | 20 |
|
| DQ44DOB |
|
3780 | 25,1 | 117.9 | 4000 | 20 |
|
| DQ44DOG |
|
3780 | 25,1 | 117.9 | 4000 | 20 |
|
| DQ44DON |
|
3780 | 25,1 | 117.9 | 4000 | 20 |
|
| DQ44DSB |
|
3780 | 25,1 | 122.9 | 4000 | 20 |
|
| DQ44DSG |
|
3780 | 25,1 | 122.9 | 4000 | 20 |
|
| DQ44DSN |
|
3780 | 25,1 | 122.9 | 4000 | 20 |
|
* Net Lumen output is indicated in technical datasheet.

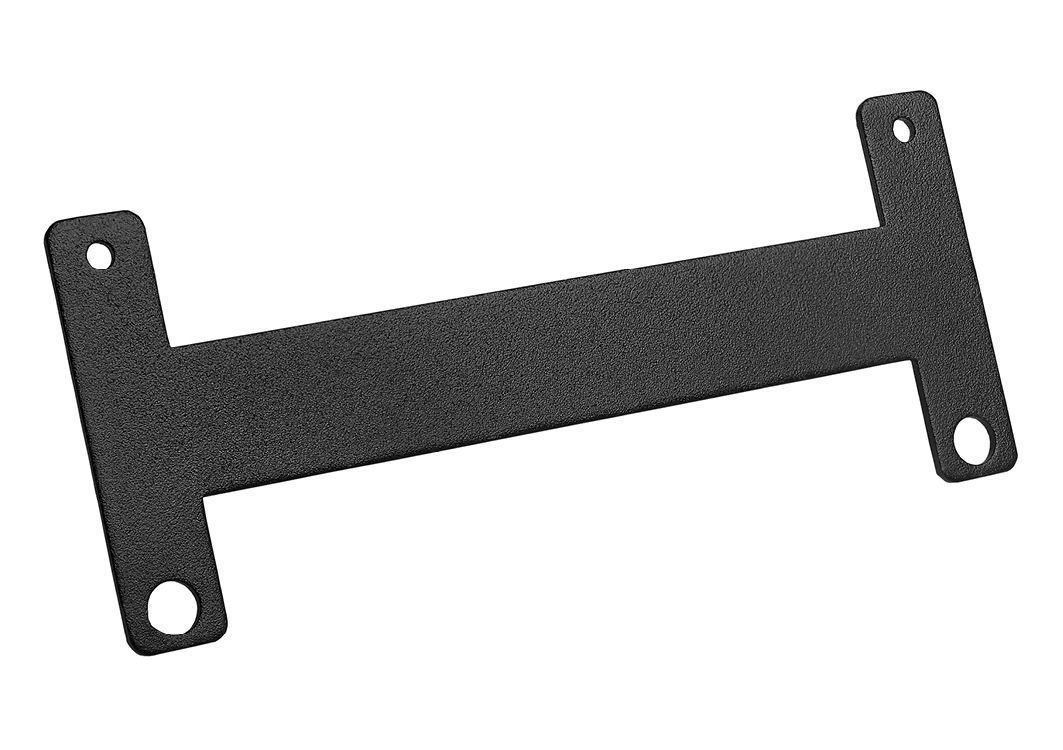

Accessories
