Avalon

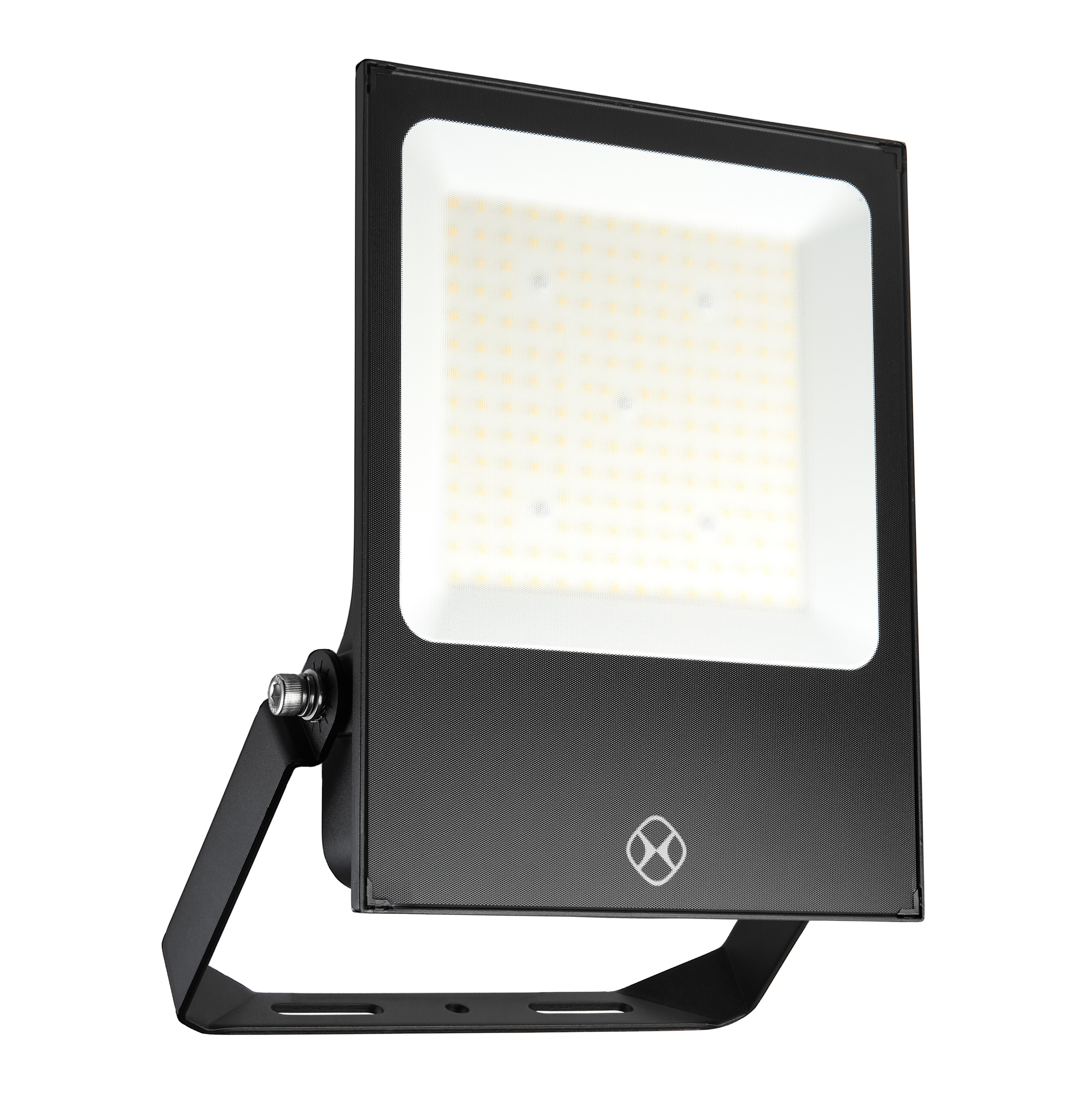

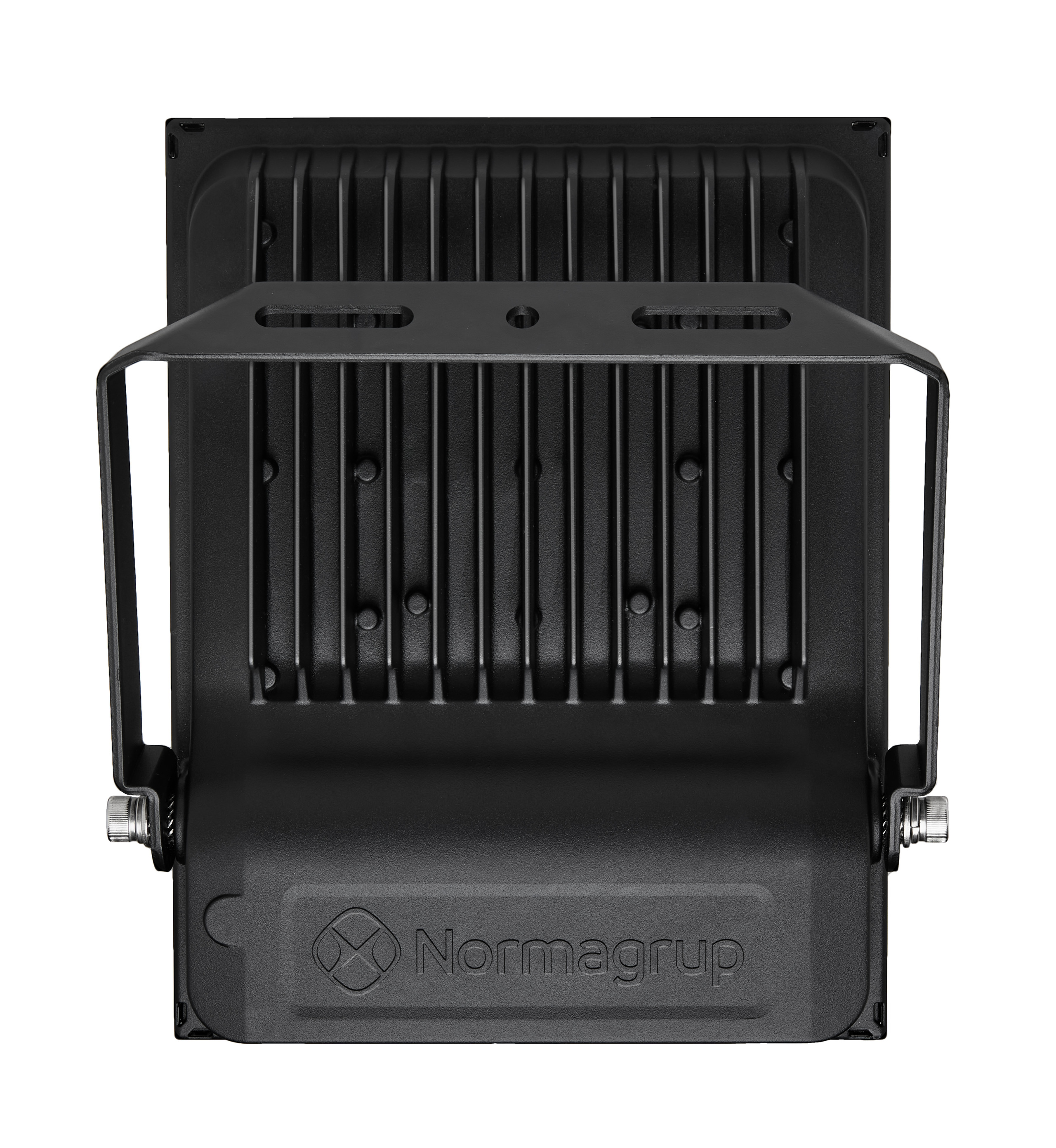

AVALON is the new IP66 projector for outside installations. It is available in black and with glass diffuser. Available in seven sizes, covering a light range between 1.316 lm and 26.300 lm and power range from 10W to 200W.

Avalon

Intro
Characteristics
Downloads
References

Technical characteristics

Installation	Wall
Color	White \| Black
CRI	> 80
IP	66

Range power (W)	9 - 180
Color temperature (ºK)	3000 \| 4000 \| 6500
Light range	1250 - 26030

null null null

Downloads

References

Use the filters to see the model reference of this product that best fits your project:

Clean filters

Reference	Version	Gross lumen output	Power	Temperature	IP
AV10-3FB	Standard	1250	9	3000	66
AV10-3FN	Standard	1250	9	3000	66

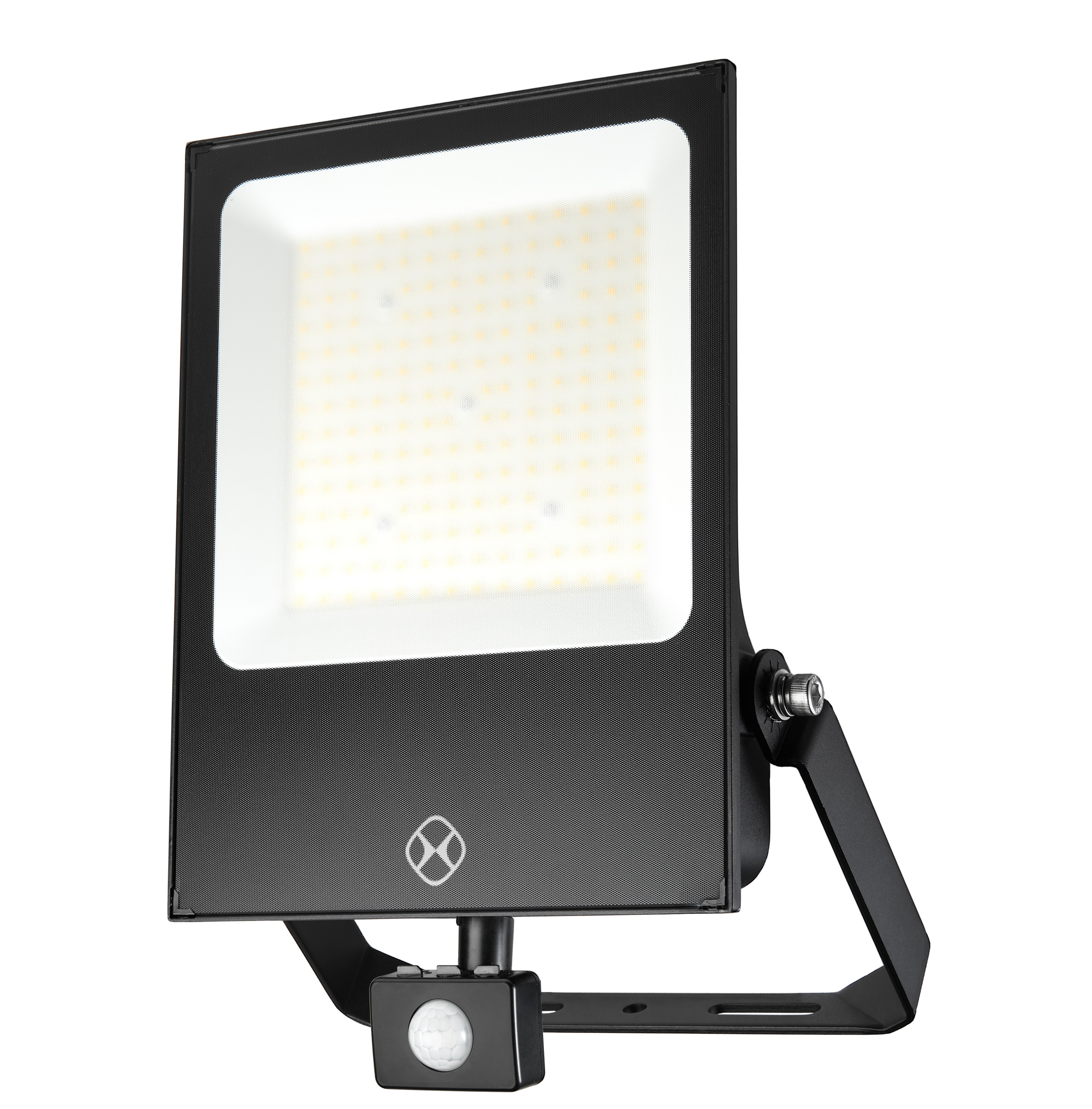

AV10S-3FN	Standard with presence sensor	1250	9	3000	66
AV10-4FB	Standard	1330	9	4000	66
AV10-4FN	Standard	1330	9	4000	66
AV10S-4FN	Standard with presence sensor	1330	9	4000	66
AV10-6FB	Standard	1330	9	6500	66
AV10-6FN	Standard	1330	9	6500	66
AV20-3FB	Standard	2620	18	3000	66
AV20-3FN	Standard	2620	18	3000	66
AV20S-3FN	Standard with presence sensor	2620	18	3000	66
AV20-4FB	Standard	2820	18	4000	66
AV20-4FN	Standard	2820	18	4000	66
AV20S-4FN	Standard with presence sensor	2820	18	4000	66
AV20-6FB	Standard	2820	18	6500	66
AV20-6FN	Standard	2820	18	6500	66
AV30-3FB	Standard	4030	27	3000	66
AV30-3FN	Standard	4030	27	3000	66
AV30S-3FN	Standard with presence sensor	4030	27	3000	66
AV30-4FB	Standard	4210	27	4000	66
AV30-4FN	Standard	4210	27	4000	66
AV30S-4FN	Standard with presence sensor	4210	27	4000	66
AV30-6FB	Standard	4210	27	6500	66
AV30-6FN	Standard	4210	27	6500	66
AV50-3FB	Standard	6270	45	3000	66
AV50-3FN	Standard	6270	45	3000	66
AV50S-3FN	Standard with presence sensor	6270	45	3000	66
AV50-4FB	Standard	6390	45	4000	66
AV50-4FN	Standard	6390	45	4000	66
AV50S-4FN	Standard with presence sensor	6390	45	4000	66
AV50-6FB	Standard	6390	45	6500	66
AV50-6FN	Standard	6390	45	6500	66
AV65-3FN	Standard	8219	58,5	3000	66
AV65C-3FN	Twilight sensor	8219	58,5	3000	66
AV65-4FN	Standard	8580	58,5	4000	66
AV65C-4FN	Twilight sensor	8580	58,5	4000	66
AV65-6FN	Standard	8580	58,5	6500	66
AV80-3FN	Standard	10520	72	3000	66
AV80C-3FN	Twilight sensor	10520	72	3000	66
AV80-4FN	Standard	10940	72	4000	66
AV80C-4FN	Twilight sensor	10940	72	4000	66
AV80-6FN	Standard	10940	72	6500	66
AV125-3FN	Standard	16010	112,5	3000	66
AV125C-3FN	Twilight sensor	16010	112,5	3000	66
AVX125-3FN	Standard	16010	112,5	3000	66
AV125-4FN	Standard	17530	112,5	4000	66
AV125C-4FN	Twilight sensor	17530	112,5	4000	66
AVX125-4FN	Standard	17530	112,5	4000	66
AV125-6FN	Standard	17530	112,5	6500	66
AV165-3FN	Standard	21290	148,5	3000	66
AV165C-3FN	Twilight sensor	21290	148,5	3000	66
AV165-4FN	Standard	23260	148,5	4000	66
AV165C-4FN	Twilight sensor	23260	148,5	4000	66
AV165-6FN	Standard	23260	148,5	6500	66
AV200-3FN	Standard	25280	180	3000	66
AV200C-3FN	Twilight sensor	25280	180	3000	66
AVX200-3FN	Standard	25280	180	3000	66
AV200-4FN	Standard	26030	180	4000	66
AV200C-4FN	Twilight sensor	26030	180	4000	66
AVX200-4FN	Standard	26030	180	4000	66
AV200-6FN	Standard	26030	180	6500	66

* Net Lumen output is indicated in technical datasheet.
