Dot

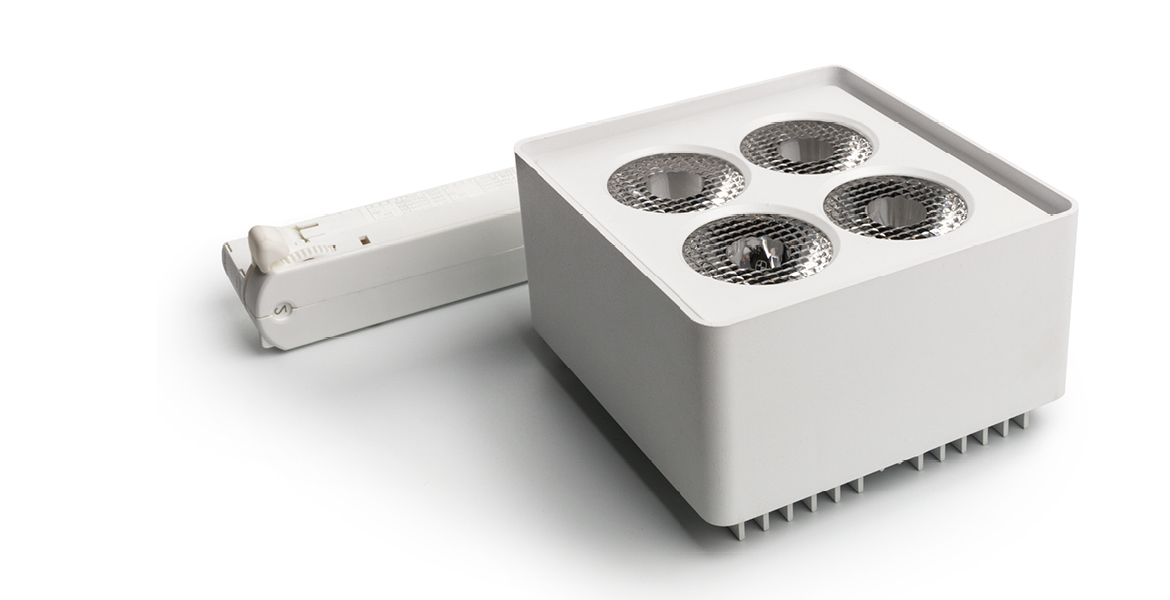

DOT is a square shaped projector for commercial buildings and exhibitions. Four optic available to cover every possible lighting need: Intensive (14º), medium (27º), extensive (45º) and oval (62º x 16º). Dot is a range of downlights for electrified rail.
Technical characteristics
| Installation | Track |
| Color | White | Black |
| CRI | > 90 |
| IP | 20 |
| Range power (W) | 24 - 24 |
| Color temperature (ºK) | 3000 | 4000 |
| Light range | 2700 - 2700 |
| Dali option |
|
Downloads
References
Use the filters to see the model reference of this product that best fits your project:
| Reference | NG Calc | Version | Gross lumen output | Power | Temperature | IP | Downloads |
|---|---|---|---|---|---|---|---|
| PD33FB |
|
Standard | 2700 | 24,6 | 3000 | 20 |
|
| PD33FN |
|
Standard | 2700 | 24,6 | 3000 | 20 |
|
| PD33MB |
|
Standard | 2700 | 24,6 | 3000 | 20 |
|
| PD33MN |
|
Standard | 2700 | 24,6 | 3000 | 20 |
|
| PD33OB |
|
Standard | 2700 | 24,6 | 3000 | 20 |
|
| PD33ON |
|
Standard | 2700 | 24,6 | 3000 | 20 |
|
| PD33SB |
|
Standard | 2700 | 24,6 | 3000 | 20 |
|
| PD33SN |
|
Standard | 2700 | 24,6 | 3000 | 20 |
|
| PD34FB |
|
Standard | 2700 | 24,6 | 4000 | 20 |
|
| PD34FN |
|
Standard | 2700 | 24,6 | 4000 | 20 |
|
| PD34MB |
|
Standard | 2700 | 24,6 | 4000 | 20 |
|
| PD34MN |
|
Standard | 2700 | 24,6 | 4000 | 20 |
|
| PD34OB |
|
Standard | 2700 | 24,6 | 4000 | 20 |
|
| PD34ON |
|
Standard | 2700 | 24,6 | 4000 | 20 |
|
| PD34SB |
|
Standard | 2700 | 24,6 | 4000 | 20 |
|
| PD34SN |
|
Standard | 2700 | 24,6 | 4000 | 20 |
|
| PD33DFB |
|
DALI 1 | 2700 | 24,6 | 3000 | 20 |
|
| PD33DFN |
|
DALI 1 | 2700 | 24,6 | 3000 | 20 |
|
| PD33DMB |
|
DALI 1 | 2700 | 24,6 | 3000 | 20 |
|
| PD33DMN |
|
DALI 1 | 2700 | 24,6 | 3000 | 20 |
|
| PD33DOB |
|
DALI 1 | 2700 | 24,6 | 3000 | 20 |
|
| PD33DON |
|
DALI 1 | 2700 | 24,6 | 3000 | 20 |
|
| PD33DSB |
|
DALI 1 | 2700 | 24,6 | 3000 | 20 |
|
| PD33DSN |
|
DALI 1 | 2700 | 24,6 | 3000 | 20 |
|
| PD34DFB |
|
DALI 1 | 2700 | 24,6 | 4000 | 20 |
|
| PD34DFN |
|
DALI 1 | 2700 | 24,6 | 4000 | 20 |
|
| PD34DMB |
|
DALI 1 | 2700 | 24,6 | 4000 | 20 |
|
| PD34DMN |
|
DALI 1 | 2700 | 24,6 | 4000 | 20 |
|
| PD34DOB |
|
DALI 1 | 2700 | 24,6 | 4000 | 20 |
|
| PD34DON |
|
DALI 1 | 2700 | 24,6 | 4000 | 20 |
|
| PD34DSB |
|
DALI 1 | 2700 | 24,6 | 4000 | 20 |
|
| PD34DSN |
|
DALI 1 | 2700 | 24,6 | 4000 | 20 |
|
* Net Lumen output is indicated in technical datasheet.
