Nassel S

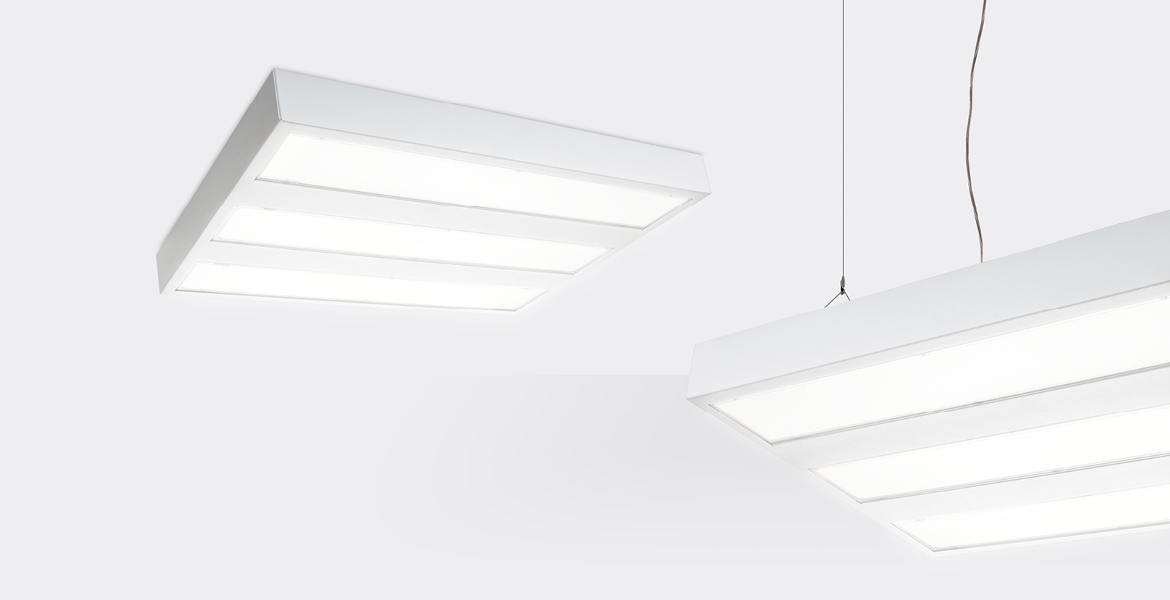

Nassel is an innovative LED luminaire model particularly suitable for modular ceilings. Achieves direct and comfortable light thanks to the combination of two diffusers (a microprismatic diffuser and an opal diffuser) and a highly reflective thermoplastic reflector. NASSEL S is the version of this fitting for surface ceiling mounting.

Nassel S

Technical characteristics

Installation	Surface Mounting \| Suspended
Color	White
CRI	> 80
IP	20 \| 30

Range power (W)	24 - 48
Color temperature (ºK)	3000 \| 4000
Light range	3400 - 7400
Dali option

Downloads

References

Use the filters to see the model reference of this product that best fits your project:

Reference	Gross lumen output	Power	Efficiency (lm/W)	Temperature	CRI
NA23B	3400	24	103.0	3000	80
NAS23B	3400	24	103.0	3000	80
NA24B	3700	24	112.0	4000	80
NAS24B	3700	24	112.0	4000	80
NA33B	5100	36	103.0	3000	80
NAS33B	5100	36	103.0	3000	80
NA34B	5550	36	112.0	4000	80
NAS34B	5550	36	112.0	4000	80
NA43B	6800	48	103.0	3000	80
NAS43B	6800	48	103.0	3000	80
NA44B	7400	48	112.0	4000	80
NAS44B	7400	48	112.0	4000	80
NA23DB	3400	24	103.0	3000	80
NAS23DB	3400	24	103.0	3000	80
NA24DB	3700	24	112.0	4000	80
NAS24DB	3700	24	112.0	4000	80
NA33DB	5100	36	103.0	3000	80
NAS33DB	5100	36	103.0	3000	80
NA34DB	5550	36	112.0	4000	80
NAS34DB	5550	36	112.0	4000	80
NA43DB	6800	48	103.0	3000	80
NAS43DB	6800	48	103.0	3000	80
NA44DB	7400	48	112.0	4000	80
NAS44DB	7400	48	112.0	4000	80

* Net Lumen output is indicated in technical datasheet.
