Nassel Avant

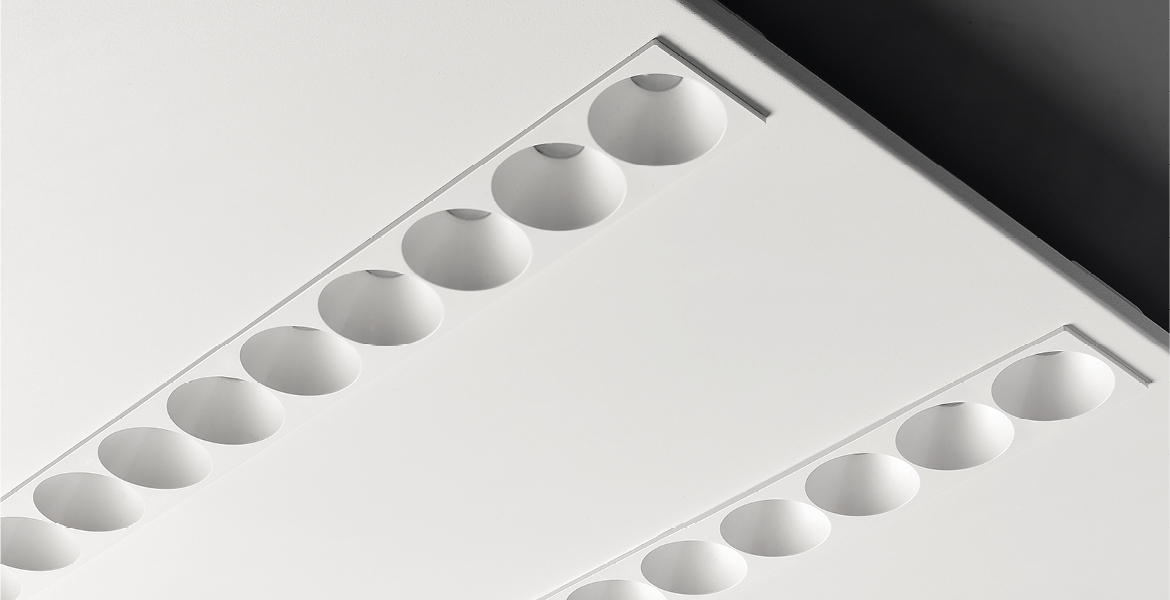

NASSEL AVANT is an LED panel with a metallic frame and a multi-reflector plastic system that provides uniform and confortable lighting in the workplace environment.
Technical characteristics
| Installation | Recessed Mounting |
| Color | White |
| CRI | > 80 |
| IP | 20-44 |
| Range power (W) | 25 - 27 |
| Color temperature (ºK) | 2700-5600 | 2700-6500 | 3000 | 4000 |
| Light range | 3345 - 5000 |
| Dali option |
|
Downloads
References
Use the filters to see the model reference of this product that best fits your project:
| Reference | NG Calc | Gross lumen output | Power | Efficiency (lm/W) | Temperature | CRI | Downloads |
|---|---|---|---|---|---|---|---|
| NX3ZB |
|
3345 | 25,9 | 85.0 | 2700-5600 | 80 |
|
| NX3ZSB |
|
3345 | 25,9 | 85.0 | 2700-5600 | 80 |
|
| NX33B |
|
4800 | 27 | 118.0 | 3000 | 80 |
|
| NX43B |
|
4800 | 27 | 118.0 | 3000 | 80 |
|
| NX34B |
|
5000 | 27 | 122.0 | 4000 | 80 |
|
| NX44B |
|
5000 | 27 | 122.0 | 4000 | 80 |
|
| NX3TWB |
|
3345 | 25,9 | 85.0 | 2700-6500 | 80 |
|
| NX33DB |
|
4800 | 27 | 118.0 | 3000 | 80 |
|
| NX34DB |
|
5000 | 27 | 122.0 | 4000 | 80 |
|
| NX43DB |
|
4800 | 27 | 118.0 | 3000 | 80 |
|
| NX44DB |
|
5000 | 27 | 122.0 | 4000 | 80 |
|
* Net Lumen output is indicated in technical datasheet.
