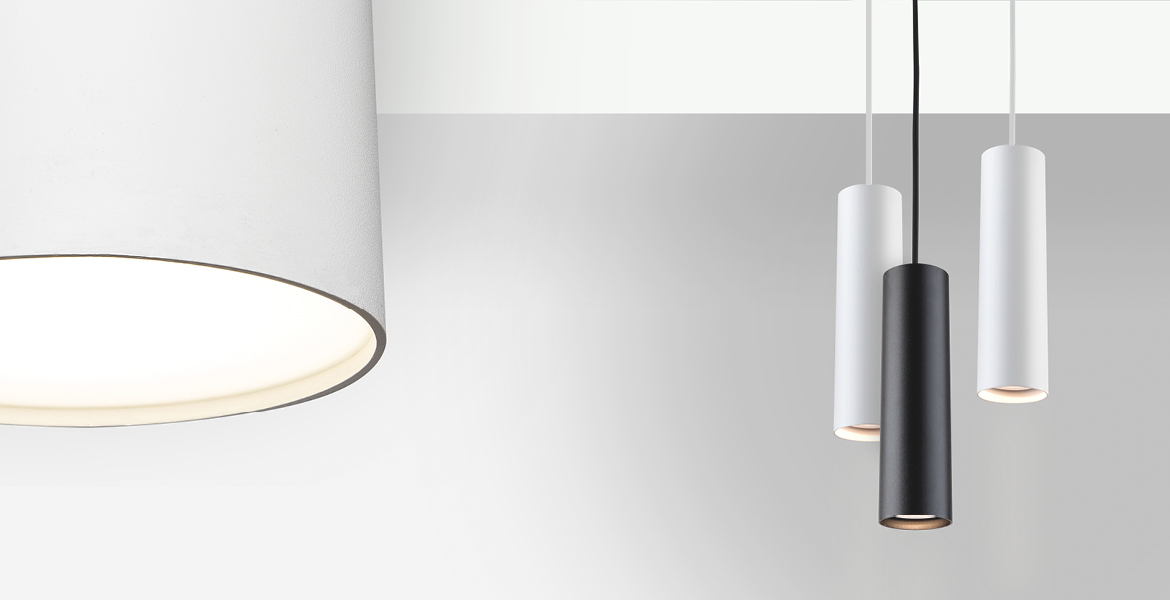

Cyre Micro
CYRE is a range of luminaries for suspended mounting in the ceiling. They are based on a cylindrical extruded aluminium profile and have a reflector made of high reflection technical polycarbonate. CYRE is available in two sizes (standard and micro) and three finishings (white, grey or black). Ultimately, a luminaire that illuminates and decorates the room.
Technical characteristics
| Installation | Suspended |
| Color | White | Grey | Black |
| CRI | > 80 |
| IP | 20 |
| Range power (W) | 6 - 6 |
| Color temperature (ºK) | 3000 | 4000 |
| Light range | 760 - 885 |
| Dali option |
|
Downloads
References
Use the filters to see the model reference of this product that best fits your project:
| Reference | NG Calc | Version | Gross lumen output | Power | Temperature | IP | Downloads |
|---|---|---|---|---|---|---|---|
| CYP03B |
|
Standard | 760 | 6,4 | 3000 | 20 |
|
| CYP03G |
|
Standard | 760 | 6,4 | 3000 | 20 |
|
| CYP03N |
|
Standard | 760 | 6,4 | 3000 | 20 |
|
| CYP03UB |
|
Standard | 760 | 6,4 | 3000 | 20 |
|
| CYP03UN |
|
Standard | 760 | 6,4 | 3000 | 20 |
|
| CYP04B |
|
Standard | 885 | 6,4 | 4000 | 20 |
|
| CYP04G |
|
Standard | 885 | 6,4 | 4000 | 20 |
|
| CYP04N |
|
Standard | 885 | 6,4 | 4000 | 20 |
|
| CYP04UB |
|
Standard | 885 | 6,4 | 4000 | 20 |
|
| CYP04UN |
|
Standard | 885 | 6,4 | 4000 | 20 |
|
| CYP03DB |
|
DALI 1 | 760 | 6,4 | 3000 | 20 |
|
| CYP03DG |
|
DALI 1 | 760 | 6,4 | 3000 | 20 |
|
| CYP03DN |
|
DALI 1 | 760 | 6,4 | 3000 | 20 |
|
| CYP03UDN |
|
DALI 1 | 760 | 6,4 | 3000 | 20 |
|
| CYP04DB |
|
DALI 1 | 885 | 6,4 | 4000 | 20 |
|
| CYP04DG |
|
DALI 1 | 885 | 6,4 | 4000 | 20 |
|
| CYP04DN |
|
DALI 1 | 885 | 6,4 | 4000 | 20 |
|
* Net Lumen output is indicated in technical datasheet.
