Pagoda

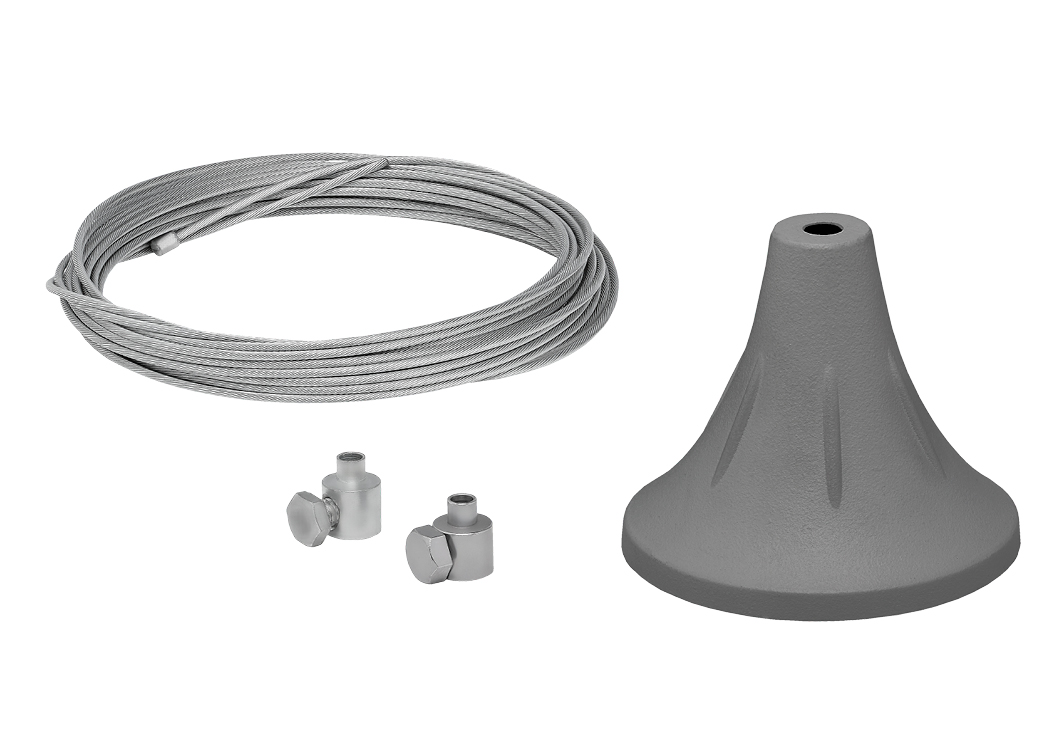

Luminaire to be suspended from the ceiling. Consists of an external aluminium with a second reflector and the electronic equipment inside. Tempered glass is used to close the set. Suspended by a metal wire.
Technical characteristics
| Installation | Suspended |
| Color | Grey |
| CRI | > 80 |
| IP | 20 |
| Range power (W) | 17 - 35 |
| Color temperature (ºK) | 2700 | 3000 | 4000 | 5000 |
| Light range | 1760 - 6100 |
| Dali option |
|
Downloads
References
Use the filters to see the model reference of this product that best fits your project:
| Reference | NG Calc | Version | Gross lumen output | Power | Temperature | IP | Downloads |
|---|---|---|---|---|---|---|---|
| VGMG |
|
Standard | 1760 | 25,5 | 4000 | 20 |
|
| VGBG |
|
Standard | 2365 | 24,5 | 2700 | 20 |
|
| VG33G |
|
Standard | 2650 | 17,4 | 3000 | 20 |
|
| VG34G |
|
Standard | 2850 | 17,4 | 4000 | 20 |
|
| VGFG |
|
Standard | 3250 | 25,5 | 5000 | 20 |
|
| VG43G |
|
Standard | 3580 | 25,1 | 3000 | 20 |
|
| VG44G |
|
Standard | 3780 | 25,1 | 4000 | 20 |
|
| VG63G |
|
Standard | 5800 | 35,2 | 3000 | 20 |
|
| VG64G |
|
Standard | 6100 | 35,2 | 4000 | 20 |
|
| VG33DG |
|
DALI 1 | 2650 | 17,4 | 3000 | 20 |
|
| VG34DG |
|
DALI 1 | 2850 | 17,4 | 4000 | 20 |
|
| VG43DG |
|
DALI 1 | 3580 | 25,1 | 3000 | 20 |
|
| VG44DG |
|
DALI 1 | 3780 | 25,1 | 4000 | 20 |
|
| VG63DG |
|
DALI2 | 5800 | 35,2 | 3000 | 20 |
|
| VG64DG |
|
DALI2 | 6100 | 35,2 | 4000 | 20 |
|
* Net Lumen output is indicated in technical datasheet.
